Explanation

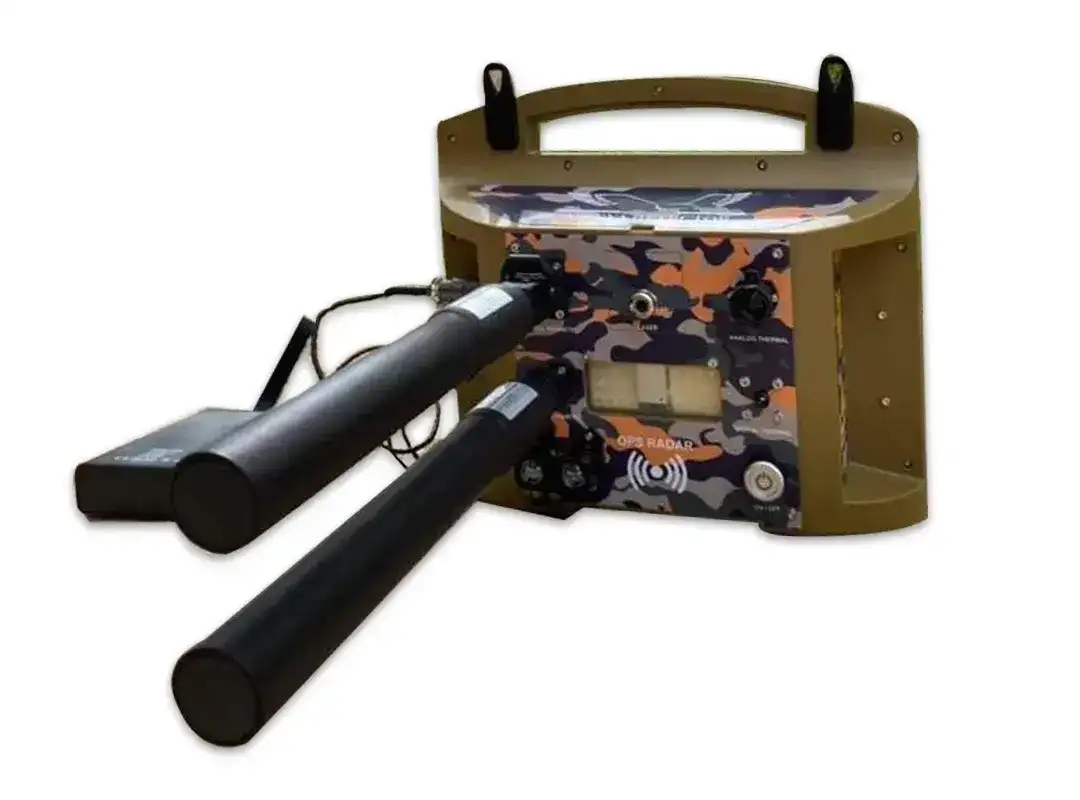

M-5 Device will enable you, our valuable users, to be more successful and closer to the result than anything else, with its superior solutions and options equipped with state-of-the-art multi-technology radars and detection sensors, and its multiple technologies and sensors in every field.

M-5 will minimize the need for a computer thanks to its internal screen. With the built-in command screen, you can easily see the menus and scan according to your needs. Scanning always takes place in real-time real team. The M5 series is the most advanced of the Rb series. It has been produced after a long R & D work by blending all the features and capabilities of the Rb-1 M2, Rb-1 M3, Rb-1 M4 series.

M-5 Sensors and scanning technologies
  • Magnetic Digital sensor (phase reader)
  • Thermal Magnetic sensor (temperature difference reader)
  • Thermal Digital sensor (temperature difference reader)
  • Ops Radar (reading surface distance & movement)
  • Lidar ( Distance reader )
  • Doppler Radar (Ground activator)

M-5 Purposer

  • Metal detection
  • Gap detection
  • Ground differentiation
  • OAPT Detection
  • MCT Detection
  • KST Detection
  • Distance and depth detection
  • Speed Measurement HR Radar

Effective distance field

  • Magnetic sensors 1,000 tm
  • Thermal Digital 250 m
  • Thermal Analog 60 m
  • Ops Radar 50m
  • Lidar can be measured 40 m

Technical Specifications

  • Operating temperature -20C to +40C
  • Temperature when not working -40C to +60C
  • Do not expose to direct sunlight.
  • Transducer pulse width modulated rate 1953 khz
  • Battery time 50-100 hr
  • Charging time max 3 hours
  • Maximum continuous power 850 mA
  • Voltage source 5V Frequency width 433mhz+/-khz miscellaneous Maximum operating humidity -95
  • Software display colors 276m
  • Screen refresh rate 0.2 sec
  • Water resistant-no
  • Processor – IMU MAGNETIC-0120ut
  • THERMAL SENSOR 64 pixels
  • Internal working memory-2 CGB
  • Modulation -100.1 am
  • Modulation signal-digital Demodulation-log
  • AM-DEMODULATOR Scan center-1.3 A
  • Scan rate-0.2 Nanosecond(max)-auto 1pps
  • Transmitters 2-7 Measuring range-+-150Ut
  • Bandwidth- DC ..1 kHz (-3 dB)
  • Green laser
  • Touch screen
  • 50 meters depth
  • 1000 meters range
